Aluminium Windows Superial -


Our Superial aluminium window system is characterised by outstanding thermal insulation achieved by the application of thermal inserts. These aluminium windows are designed for both residential and public buildings and allow the design of modern window solutions in multiple styles. The broad range of available glazing includes anti-burglary panes.
Tested heat transfer coefficient (window U value): Uw = 1.0 W/m2K


Single-frame, frame and sash cross-section: 68 x 81 mm. If technically possible, we can provide any shape and size of the window.


Three-layer laminated timber fixed or finger-jointed. Wood types: pine, meranti, oak.

Sound insulation

Sound reduction coefficient for the standard unit Rw = 31 dB. Optional glazing unit with improved sound reduction for Rw = 34-42 dB, depending on a selected glazing unit.


Double-glazing, single-chamber (4-18Ar-4), 26 mm unit, the heat transfer coefficient Ug = 1.0 W / m2K (BS EN-674), inter-pane cavity fil led with argon. Triple-glazing, twin-chamber (4-10Ar-4-10Ar-4), 32 mm unit, the heat transfer coefficient Ug = 0.8 W / m2K (EN-PN 674), inter-pane cavity filled with argon.Triple-glazing, twin-chamber (4-10Kr-4-10Kr-4), 32mm unit, the heat transfer coefficient Ug = 0.6 W / m2K (EN-PN 674), i nter-pane cavity filled with krypton. Ornamental glass, optionally with safety or laminated glass or sun reflective glazing. The maximum thickness of the double glazed unit is:

– 32mm (IV 68Classic, IV 68Softline).

– 26mm (IV 68 profile decorative).Aluminum Spacer as a standard. Warm edge spacer as an option.

Windows astragals

Vienna (glued on wooden + duplex inner pane spacer: 22, 32, 42mm), inter-pane, construction bar : 60mm or 80mm.


Roto NT locking fittings with micro-ventilation and anti-burglary catch.
Wrong handle position blockade – option.
Anti-burglary fittings – option.

How to open

R (side hung windows), U (tilt windows), RU (tilt & turn windows).


Transparent paints according to Sigma Coatings colour chart. Opaque paints according to RAL and NCS colour charts.4 coating system, impregnation, primer, interlayer, topcoat.


Undercut, press-in, with TPE closed profile byDeventer or Primo. Gasket colors matched to the color of woodwork. Softline – 2 rebate gasket – option.


Aluminum drip, frames and sash by BUG. White, silver, olive, and graphite anodized Alutechnik. AL coloured drip – option. Wood-coated drip – option.


Hoppe Secustic Atlanta handle in white, silver, olive.
Key-lockable handle in colors as above – option.


Uni Windows Ltd. offers a 5-year warranty on labour and materials used.

Standard glazing

One chamber heat insulating glazing unit comprises of two glass panes, including one Thermofloat glass pane with invisible layer of inert metals combination (so-called “low emission layer”). Two chamber heat insulating glazing units comprise two Thermofloat glass panes.

The space between glass panes is filled with Argon or Krypton gas, which further reduces heat transfer coefficient Ug. Protection against gas leak at the glass pane perimeter is ensured by warm distance frame with two-step sealing of plastic.

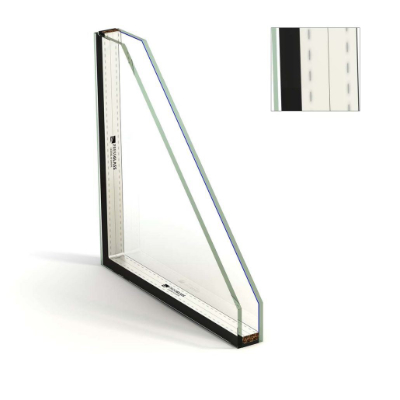

Insulated glass

Insulated glass (double, triple or quadruple glazing) filled with Argon as standard is glass with the lowest coefficient of heat transfer. The insulating quality is achieved by applying a thin layer of metal on the inside of the inner glass that reflects heat back into the room and at the same time allows heat from solar radiation to penetrate. Ordinary double glazed unit has a heat transfer coefficient Ug = 2.8 W/m2K. In our windows, as standard we use glass with a heat transfer coefficient Ug = 1.0 W/m2, this value can be reduced by up to Ug = 0.5 W/m2 using a special triple glazing or Ug = 0.3 W/m2 for quadruple glazing.

Double Glazing - Superial -


Triple Glazing - Superial -


Safety glass

Laminated glass is most known for being used on the windscreens of the majority of the world’s cars. This global use can be put down to what happens when laminated glass shatters.

When smashed, laminated glass holds in place and does not break up into large jagged shards or hundreds of little pieces. Instead, it keeps in place long enough for a replacement to be found.

This happens thanks to the plastic (polyvinyl butyral) interlay that is sandwiched between two glass sheets during manufacture. This bonds the two panes together like a glue so that even when the glass breaks, its fragments keep binding on the thin film.

This highly practical safety feature greatly reduces the chances of injury occurring from falling glass.

In addition to this, as the panes do not burst apart on impact, laminated glass leaves no hole behind for intruders and thieves to crawl through. Laminated glass also offers far superior UV resistance and sound proofing to annealed glass.

There are several different types of laminated safety glass built to withstand a specified level of attack. These include for blast-resistance glass, fire-resistance glass, bullet-resistance glass and solar control laminated glass.

Toughened glass, also known as tempered glass after its method of production, is a type of safety glass that is five times stronger than annealed and laminated glass of the same size and thickness.

Toughened glass gets this strength from the tempering process which sees it subjected to intense heating followed by rapid cooling during manufacture.

This toughness gives tempered glass a far higher load and breakage resistance. Toughened glass needs to be hit a lot harder than other safety glass in order to break.

Whereas laminated glass holds in place when shattered, toughened glass breaks up into hundreds of tiny pieces. You will probably have seen this on the floor where a telephone box or bus stop had been vandalised.

This method of breaking lowers the risk of injury compared to annealed glass which breaks up into larger, jagged pieces more likely to injure anybody in close proximity.

Tempered glass has a heat resistance four to five times stronger than standard glass and can withstand high temperature changes up to 250°C.

Glazing - Superial - Available finishes -

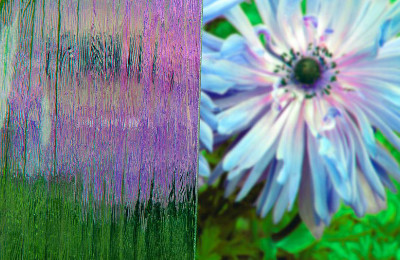

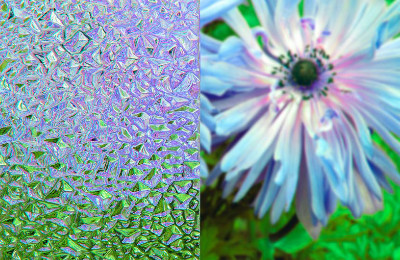

Ornamental Glass

Aesthetic, functional values and protection of privacy
The increased use of glass as a modern decorative material leads to the necessity of satisfying the specific requirements which designers and architects place before it. Thus, ornamental glass should let the light come inside a room enhancing the warmth and depth of its features while at the same time preserving its privacy. The ornamental glass offered by UNI WINDOWS boasts the highest quality and a unique style to match. By changing the structure of the glass, we can change the degree of its transparency.

Acoustic Glass

Protection against noise is one of the most important issues in our lives. The condition of assuring appropriate comfort and sometimes living in a given place is the assurance of a low level of noise.

Our subjective perception of noise is subject to the following principle: if the level of noise in a room is reduced by 10 decibels in relation to that outside, we get the impression that it is reduced by half. Noise protection must be applied everywhere where noise cannot be completely eliminated. In such applications we are faced with acoustic double and triple glazed units.

Acoustic double and triple glazed units construction is based on the asymmetry of the assembled panes of glass, flexible bondsing of the panes, and the use of attenuation gases in the space between the panes. Acoustic double and triple glazed units can achieve the acoustic insulation factor Rw = 31 – 45 dB, depending on the type of unit.

Solar control glass

Solar control glass can be divided into absorptive and reflective glass, based on their visual characteristics and the ability to reduce solar radiation. UNI WINDOWS offers three types of solar control glass:

THE SELECTIVE float glass – flat and transparent, neutral or dyed to blue, brown, grey or green in the glass structure, and coated with a metal oxide multilayer, with the aim of achieving the appropriate effect of reflection, control of isolation of rooms, as well as limiting the penetration of solar energy plus a high level of thermal protection. It may be used only in double glazing.

THE ABSORPTIVE float glass, flat and transparent, with blue, brown, grey or green tint. It may be used in single glazing or double glazing. This is applied to reduce the transmittance of solar energy.

TTHE REFLEXIVE float glass – flat and transparent, neutral or dyed to blue, brown, grey or green in the glass structure, while also coated with metal oxides for proper reflective effect. This is applied to control light, and reduce solar energy transmittance. It may be used in single glazing or double glazing – regarding a type of coating.

Warm Edge

Aluminium has significantly greater heat conductivity than the remaining window components. The aluminium spacer bar around the edge of the glass pane is the last route of excessive heat penetration from the room to the exterior. This effect has been taken into account in the new approach to calculation of the coefficient Uw of the window and has been described with coefficient Psi (Ψ). The solution to this problem may be the application of a spacer bar – called warm edge*, executed from compound insulation material or fine steel.

Warm edge criteria according to EN ISO 10077-1

To the time of establishing clear criteria enabling the definition of the warm edge concept, many spacer bars in glass units were sold on the market, which were indeed warmer than aluminium bars however had incomparably worse properties than correct solutions. According to this bars with improved design standard parameters are those, in which the spacer bar fulfils the following inequality:
Σ (diλi) ≤ 0,007 W/K

di – thickness of partition material
λi – conductive projection of material in W/mK
Example: 2(d1λ1) + (d2λ2) ≤ 0,007 W/K

Warm Edge

Warm Edge Termo

Multi Tech

Seals - Superial Seals - Superial

Deventer weather seals

Deventer weather seals offer complete solutions for windows and doors. Wind, water, smoke and fire are the types of conditions that Deventer weather seals protect against. Especially effective for exterior doors exposed to particularly wearing weather conditions, Deventer weather seals prove very reliable. Not only do Deventer weather seals protect against the elements but they are also a useful addition to minimise energy waste by keeping warmth in and stopping draughts

With rainstorms and strong wind becoming more frequent, the functioning of your windows and doors can be easily affected so administering Deventer weather seals will aid this. Deventer weather seals have been substantially tested and the quality of their design means they are incredibly resistant to water and wind. For reinforcement, all Deventer weather seals can be applied to windows and doors that are wind and water tight. The special closed cell structure that Deventer weather seals are made up of is the reason that the seals are so effective and resilient against the elements.

Roto NT hinges Hardware - Superial -

Roto NT hinges

For our flagship Roto NT hardware system, we can offer you various hinge sides to meet different requirements in timber, PVC and aluminium profiles with 16 mm hardware groove. In addition to the visible hinge sides Roto NT E5 for timber profiles and Roto NT K for PVC profiles, we set new yardsticks in terms of design

Roto NT hardware Hardware - Superial -

Roto NT hardware

Roto NT microvent Hardware - Superial -

Roto NT microvent

Micro-ventilation in the Roto NT system ensures regular air exchange through a small ventilation opening in the bathtub position. The double-opening window component, consisting of a single element, can then be mounted effortlessly, inserting simply without a template near the safety lock.

Roto NT microvent Hardware - Superial -

Roto NT microvent

The 2/3-step adjustable position of the microventile allows a lower battery angle, as an alternative to the standard swiveling opening. This way, you can get fresh air at all times without opening and closing the window all the time.

Roto NT <br>mishandling device Hardware - Superial -

Roto NT
mishandling device

The lifting mishandling device, which can be retrofitted without any problem, enables the window sash to run on the same level at all times.

Roto NT <br>mishandling device 2 Hardware - Superial -

Roto NT
mishandling device 2

The lifting mishandling device, which can be retrofitted without any problem, enables the window sash to run on the same level at all times.

Roto NT power hinge Hardware - Superial -

Roto NT power hinge

For particularly heavy, room-high windows and balcony doors made from timber or timber/aluminium, our range includes an extremely stable and at the same timer aesthetic hinge side solution in the shape of the Roto NT Power Hinge.

Roto NT security Hardware - Superial -

Roto NT security

The most important windows protection elements which guarantee safety and protection are anti-burglar fittings. The most three comon security class are: WK1 - the window is not to force by using only muscle strength (without tools); WK2 – window can not be beat for 3minutes by using simple tools ( screwdrivers, pliers, tongs, etc.); WK3 – window does not give up even to the metal crowbar at least 5 minutes.

Aluminium Windows
